Extruded curb machine for Embankment-Concrete faced rockfill dam

Extruded curb machine for Embankment-Concrete faced rockfill dam is a special designed machine for dam lining work. It can form concrete curb on dam surface layer by layer.No need to set wood mold by workers. Saving manpower and saving time.

The extruded curb size is a little different according to different dams. 760mm/720mm/710mm all can be customized.Normally in 400mm hign. Slope 1:1:4.

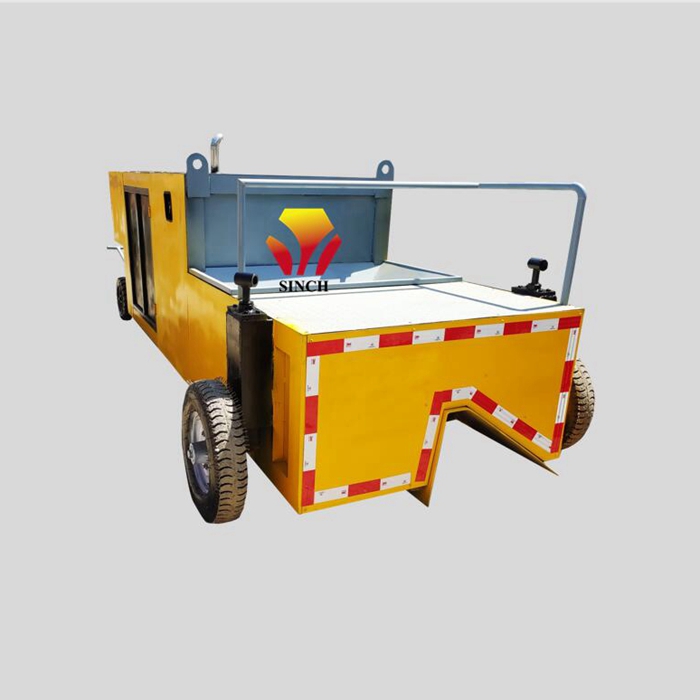

The JYJ400 curb machine adopts auger blades to squeeze concrete into back mold then forming concrete curbs continuously. 75kw diesel generator provides enough power for the extruding and moving system. The kerb machine can move automatically. Direction steering controlled by workers.

Attention should be paid during construction:

Extruded curb machine for Embankment-Concrete faced rockfill dam

1. Adjust the body of the side wall extruder to make it in a horizontal state.

2. Check the tire height of the side wall extruder to make the kerb height meet the design requirements. Side wall extruder is a kind of mechanical equipment used for concrete side wall extrusion construction. It is mainly composed of rear wheel, forming silo, mixing cage silo, power silo, hydraulic system and front wheel steering mechanism. It is a new type of concrete construction machinery developed for the use of “side wall construction method”. It is widely used in the concrete slope protection of highway and railway filling engineering, the anti-skid concrete wall around buildings and mountains, as well as the concrete protection surface of rivers and lakes for flood control dykes and other occasions.
