Concrete Pump
- PRODUCT DETAIL
The concrete pump consists of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along pipelines. It is mainly used in house construction, bridges and tunnel construction.
It is mainly divided into gate valve concrete transfer pump and S valve concrete transfer pump.
The other is to install the pump body on the car chassis and then equip it with a telescopic or folding fabric rod to form a pump truck.
We have a variety of models for customers to choose from.
| Model No. | CP-800 | Motor power | 15kw |
| Max aggragate size | ≤20mm | System pressure | 15Mpa |
| Capacity | 8m³/h | Working pressure | 10MPa |
| Max convey distance/height | 60m/25m | Hose ID | 80mm |
| Feeding height | 70cm | Control mode | Remote/electric |
| Dimension | 1900*750*1200mm | Weight | 600Kg |

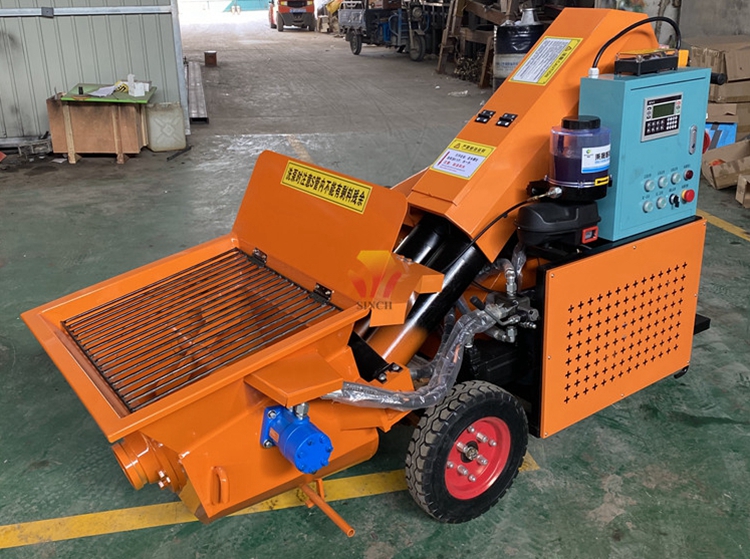

| Model No. | CP-1100 | Motor power | 7kw |
| Max aggragate size | ≤20mm | System pressure | 13Mpa |
| Capacity | 11m³/h | Working pressure | 10MPa |
| Max convey distance/height | 60m/30m | Hose ID | 80-100mm |
| Dimension | 2100*750*1350mm | Weight | 500Kg |

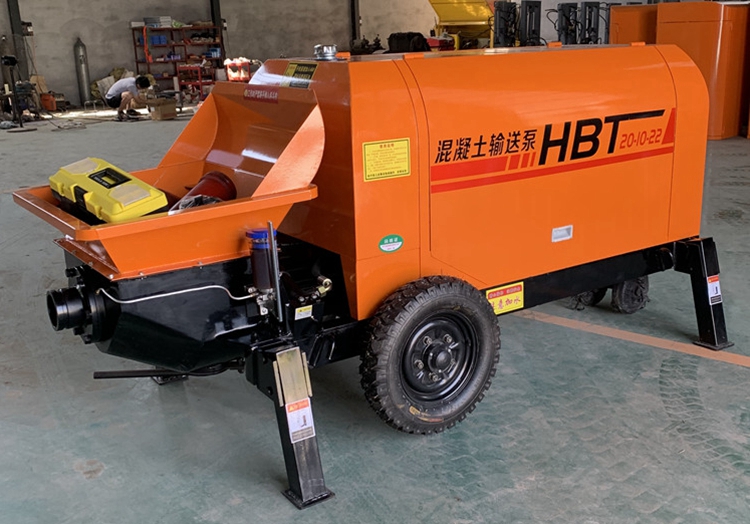

| Model No. | CP-20-22 | Motor power | 22kw |
| Max aggragate size | ≤20mm | System pressure | 20Mpa |
| Capacity | 12m³/h | Working pressure | 13MPa |
| Max convey distance/height | 80m/40m | Hose ID | 80-100mm |
| Feeding height | 90cm | Control mode | Remote/electric |
| Dimension | 2500*120*1200mm | Weight | 1050Kg |

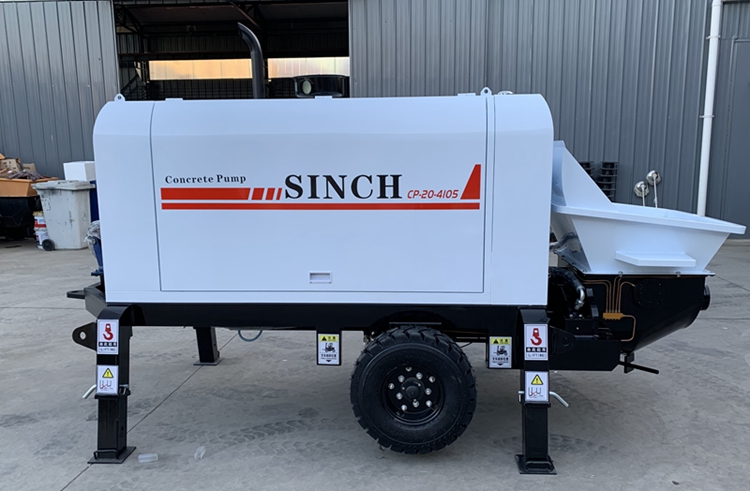

From CP-30 type, we have both electric and diesel types.
| Model No. | CP-30-37 | Motor power | 37kw |
| Max aggragate size | ≤30mm | System pressure | 20Mpa |
| Capacity | 25-30m³/h | Working pressure | 18MPa |
| Max convey distance/height | 90m/30m | Hose ID | 80-125mm |
| Feeding height | 90cm | Control mode | Remote/electric |
| Dimension | 3450*1400*1450mm | Weight | 1800Kg |
| Model No. | CP-30-4105 | Motor power | 72kw |
| Max aggragate size | 5-30mm | System pressure | 11Mpa |
| Capacity | 18-20m³/h | Hopper capacity | 0.35m³ |
| Max convey distance/height | 90m/30m | Hose ID | 80-125mm |
| Feeding height | 110cm | Control mode | Remote/electric |
| Dimension | 3600*1500*1700mm | Weight | 2300Kg |
| Model No. | CP-40-45 | Motor power | 45kw |
| Max aggragate size | ≤30mm | System pressure | 20Mpa |
| Capacity | 30-35m³/h | Working pressure | 18MPa |
| Max convey distance/height | 180m/100m | Hose ID | 80-125mm |
| Feeding height | 110cm | Control mode | Remote/electric |
| Dimension | 4200*1450*1500mm | Weight | 2200Kg |
| Model No. | CP-40-4108 | Motor power | 72kw |
| Max aggragate size | 5-30mm | System pressure | 11Mpa |
| Capacity | 30-35m³/h | Hopper capacity | 0.35m³ |
| Max convey distance/height | 180m/100m | Hose ID | 80-125mm |
| Feeding height | 110cm | Control mode | Remote/electric |
| Dimension | 4500*1700*1700mm | Weight | 3100Kg |
| Model No. | CP-50-55 | Motor power | 55kw |
| Max aggragate size | ≤50mm | System pressure | 30Mpa |
| Capacity | 35-40m³/h | Working pressure | 20MPa |
| Max convey distance/height | 260m/140m | Hose ID | 80-125mm |
| Feeding height | 110cm | Control mode | Remote/electric |
| Dimension | 4200*1500*1600mm | Weight | 2200Kg |
| Model No. | CP-50-4108 | Motor power | 90kw |
| Max aggragate size | ≤50mm | System pressure | 20Mpa |
| Capacity | 30-35m³/h | Hopper capacity | 0.35m³ |
| Max convey distance/height | 180m/100m | Hose ID | 80-125mm |
| Feeding height | 110cm | Control mode | Remote/electric |
| Dimension | 4500*1700*1700mm | Weight | 3100Kg |
